Gladiator EVO 'Space Combat Edition' Premium
Gladiator EVO 'Space Combat Edition' Premium
The Gladiator EVO Premium is the basis of a modular VKB flight control system.
For a detailed product description and to find out what's new about the EVO compared to the superseded NXT controllers, please click here.
Content
- 1 GNX SCG Premium Grip (Left or Right)
- 1 GNX EVO Base
GNX SCG Premium Grip
- Compact grip design - perfect for tabletop joysticks
- Lockable Twist (Z-axis) with contactless MaRS sensor
- 1 Dual Action Trigger
- 1 Rapid Fire Trigger
- 3 Hat switches with centre push (4-way)
- 3 buttons
- 1 analog mini stick with center push (8-way)
- Programmable red colour LED
- 2 interchangeable palm rests (total 3 palm-size adjustments)
- Programmable RGB LED
- Extra button module for C1 position
- Extra hat switch module for A1 position
- Trigger cover
GNX EVO Base
- 2 Contactless MaRS sensors on X and Y axes
- 1 Auto-centreing 3-position switch
- 1 Throttle wheel
- 1 Rotary encoder
- 3 buttons
- Gimbal with ball bearings
- Adjustable dry clutches for user-tunable load
- 2 Programmable single-colour LEDs
- Tabletop base steel plate
- Operating manual
- Set of soft springs
- Set of strong springs
- Spring extractor tool
- Set of screws
- Screwdriver
- USB cable (180cm/70inch)
- Cable holder tool
General Specifications
- Base & Grip made from industrial grade ABS
- Gimbal made from glass-fiber-reinforced PA
- Tabletop base plate made from steel
- 32-bit ARM Controllers inside base and grip
- ALPS buttons (Japan OEM) for extended longevity
- Contactless MaRS sensors with High Resolution
- Plug & Play with Driver-Free Installation (Recommended for Most Users)
- Firmware Upgrade via USB
- Onboard Memory for Storing Profiles
- Optional Programming Software Available (For Advanced Users)
Warranty
-
1 Year
Compatible with
- STECS Throttles (click here)
- GNX Extension modules (click here)
- T-Rudder Mk.V (click here)
- Universal Controller Mount UCM-S GL (click here)
Instructions
Downloads
Please visit the Downloads section for the latest firmware and tools.
EVO Product line
After upgrading from the Thrustmaster T16000M, the difference in quality is immediately noticeable. The Gladiator EVO Premium feels significantly more robust, with smoother movement, better precision, and a much more premium overall construction.
The button layout is where the Premium version really shines. The additional hat switches, mini-stick, rapid-fire trigger, and extra programmable inputs provide far more control options than the T16000M. This is particularly valuable in Star Citizen, where there are a huge number of ship, targeting, navigation, and interaction functions that benefit from being directly accessible without relying heavily on the keyboard.
For Star Citizen, I found the number of buttons and hats to be more than sufficient for a comfortable and immersive setup. Most frequently used functions can be mapped directly to the stick, reducing the need to remove your hands from the controls during gameplay.
Overall, the Gladiator EVO 'Space Combat Edition' Premium is a substantial upgrade from the T16000M. The improved build quality, ergonomics, and expanded control options make it an excellent choice for space simulation games and well worth the investment for anyone looking to take their setup to the next level.

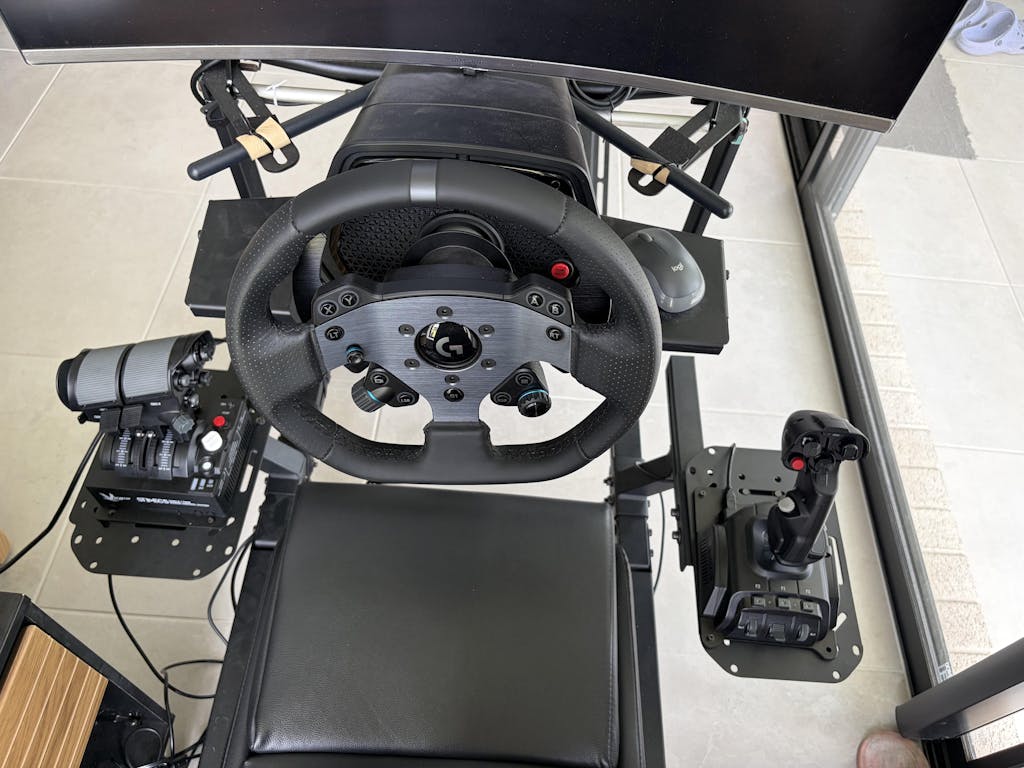

First time flight sim guy and years ago bought the T.16000M FCS Hotas because I wanted plug and play and was scared of buying items that needed calibration and putting together. Those 'toys' are now with my son so not a total loss, but I should've bought VKB from the start. Easy to put together, easy to set up, and significantly better. Now I have the VKB pedals, Gladiator EVO, STECS Standard, and the UCM short for gladiator. The latter fits extremely well in my 90-degree set up desk so it sits between my legs. Now looking at one or two more items just to make sure my son is more jealous as both he and I learn MSFS 2024 before leaping into DCS. Not the best photo, but of course the key items after the VKB ones of course is the wine 😉😆
Amazing sticks so worth it.
Effortless set up and easy to fly Xplane. Ordered for the rudder pedals too
Really solid feeling joystick at a great price. Everything feels super solid and well made despite being all plastic. All buttons have really solid feedback when pressed and can be easily reached without stretching or feeling cramped. The amount of inputs on the stick gives heaps of variety when setting keybinds in game too.
