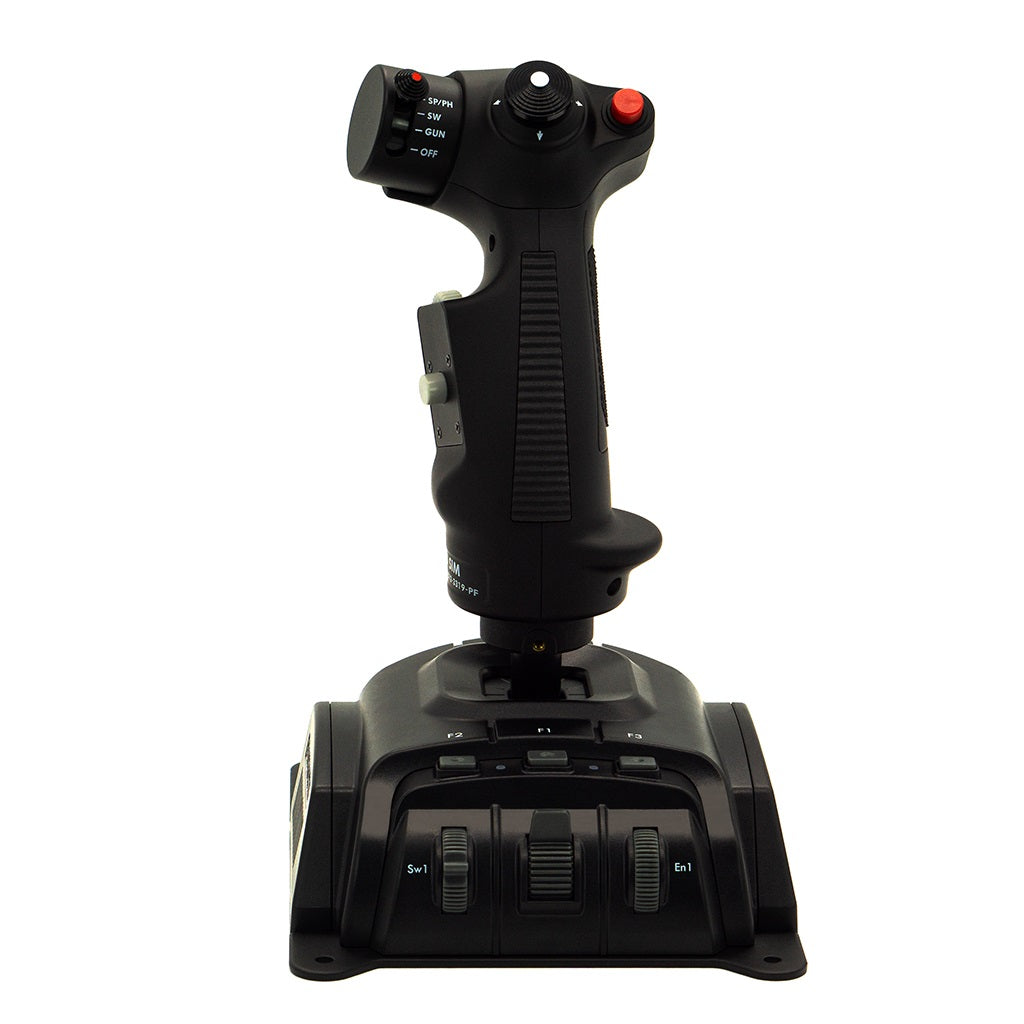

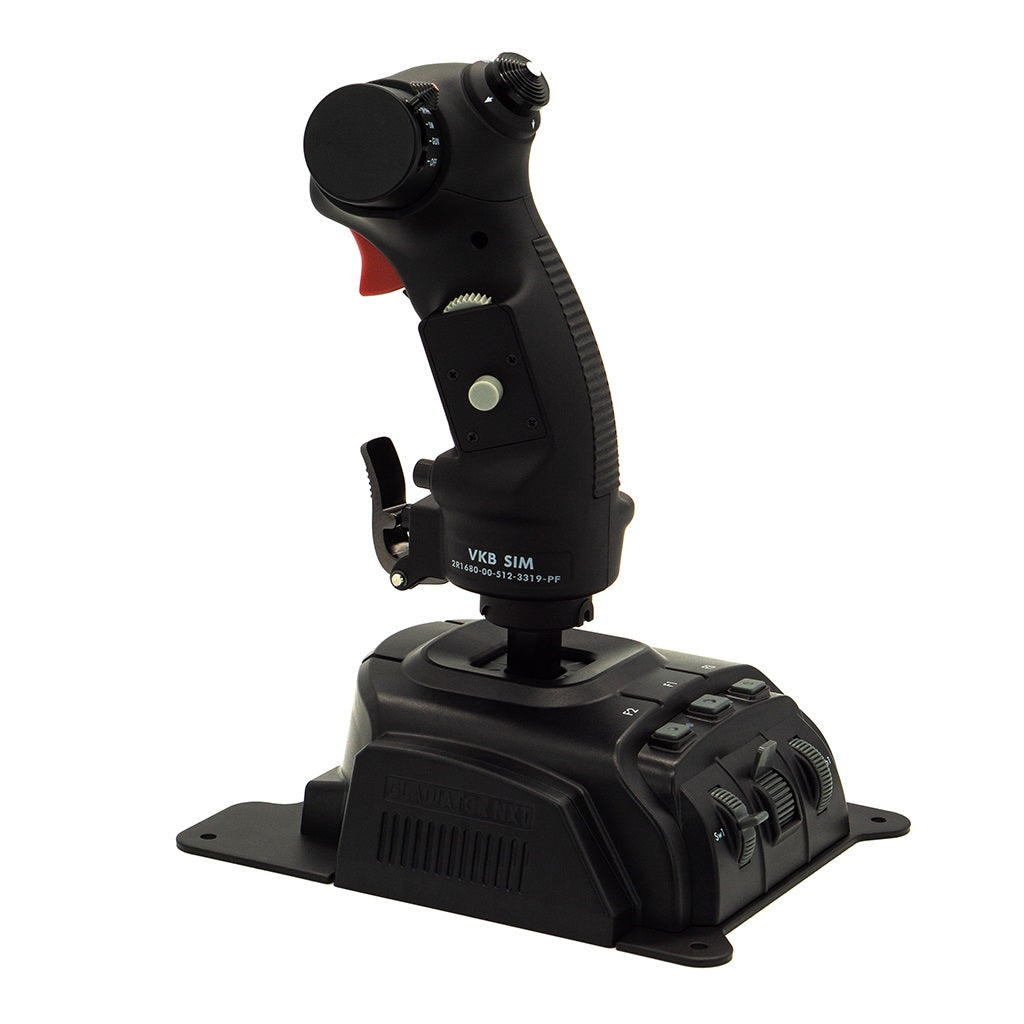

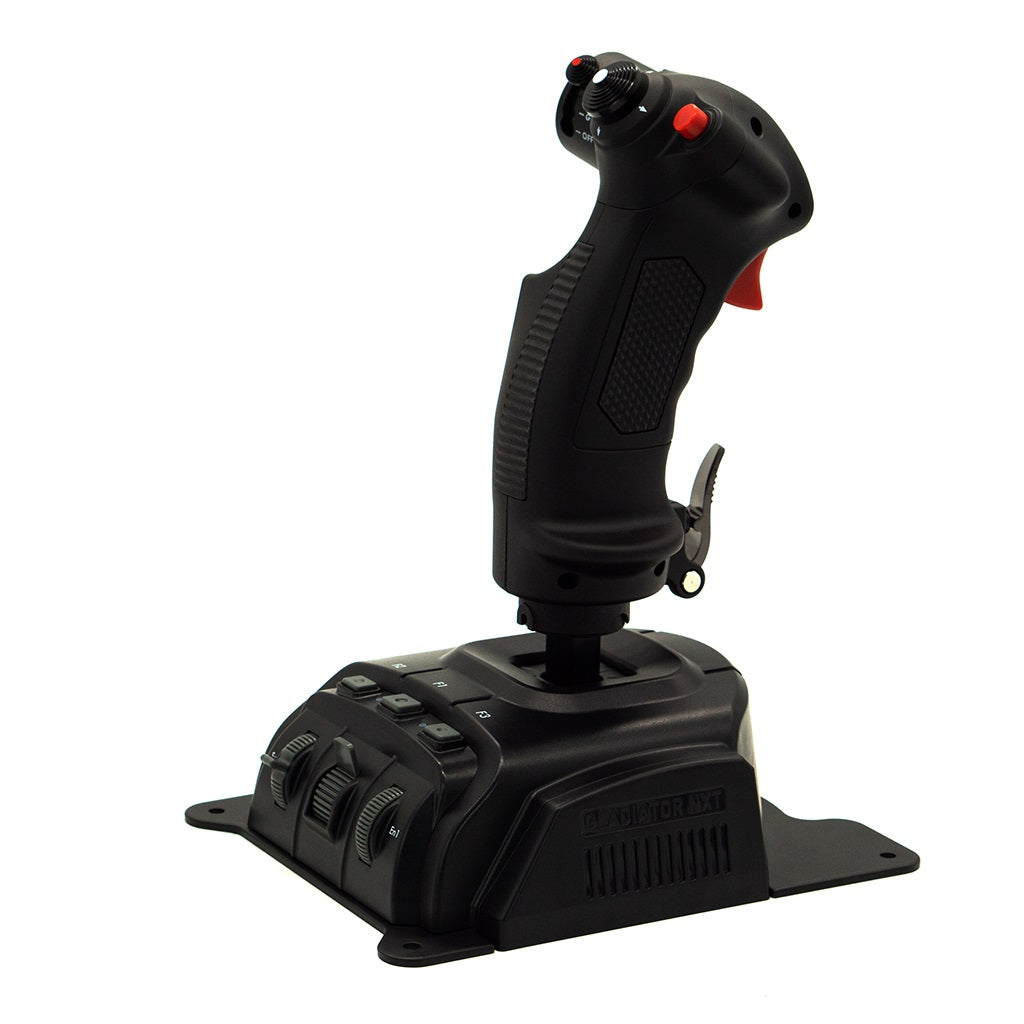

Gladiator EVO 'F-14 Combat Edition'

Rs. 17,200.00
Rs. 17,200.00

Gladiator EVO 'F-14 Combat Edition'

The Gladiator EVO 'F-14 Combat Edition' is the ideal controller for any avid combat pilots and forms the basis of a modular VKB flight control system.

For a detailed product description and to find out what's new about the EVO compared to the superseded NXT controllers, please click here.

Gladiator EVO F-14 specs



Content

  • 1 GNX F-14 grip
  • 1 GNX EVO Base

GNX F-14 Grip

  • F-14 replica grip
  • Built-in, lockable twist adapter
  • Rubber inserts for a no slip firm and handy grip
  • Metal ammo switch, hat, and emergency-autopilot-disable-trigger
  • Long travel, soft-click buttons
  • Modular hat design (fully dismantlable, all buttons user replaceable)
  • Ammo switch design based on contactless sensor
  • Spring-loaded, self-centreing DLC (Direct Lift Control) manoeuvre wheel design based on contactless sensor
  • Two-step trigger design based on cam mechanism – similar to that used in real life war planes
  • 32-bit ARM controller as the brain of the grip
  • Made from industrial-grade ABS

Available Grip Axes / Buttons

  • 1 Rudder axis (lockable)
  • 1 DLC (Direct Lift Control) axis
  • 1 Hat Switch with push
  • 1 Dual-stage trigger
  • 1 Four-stage ammo selector with safety lock and push
  • 4 Programmable buttons

GNX EVO Base

  • 2 Contactless MaRS sensors on X and Y axes
  • 1 Auto-centreing 3-position switch
  • 1 Throttle wheel
  • 1 Rotary encoder
  • 3 buttons
  • Gimbal with ball bearings
  • Adjustable dry clutches for user-tunable load
  • 2 Programmable single-colour LEDs
  • Tabletop base steel plate
  • Operating manual
  • Set of soft springs
  • Set of strong springs
  • Spring extractor tool
  • Set of screws
  • Screwdriver
  • USB cable (180cm/70inch)
  • Cable holder tool

    General Specifications

    • Base & Grip made from industrial grade ABS
    • Gimbal made from glass-fiber-reinforced PA
    • Tabletop base plate made from steel
    • 32-bit ARM Controllers inside base and grip
    • ALPS buttons (Japan OEM) for extended longevity
    • Contactless MaRS sensors with High Resolution
    • Plug & Play with Driver-Free Installation (Recommended for Most Users)
    • Firmware Upgrade via USB
    • Onboard Memory for Storing Profiles
    • Optional Programming Software Available (For Advanced Users)

    Gladiator EVO base

    Warranty

    • 1 Year

    Compatible with

    Instructions

    Downloads

    Please visit the Downloads section for the latest firmware and tools.

    EVO Product line

    Gladiator EVO product line



    Customer Reviews

    Based on 3 reviews
    100%
    (3)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    A
    AncLott

    Hey I want to ask is the F-14 Grip also premium edition?

    Hi AncLott,

    Thank you for the 5 star rating and with regards to your question, there is only one version of the F-14 grip.
    We hope this helps.

    Regards, VKB Support team

    B
    Benjamin Eastwood
    Very nice 👍

    I am enjoying my VKB Gladiator EVO F-14 combat edition. Assembly was extremely easygoing and the feel of the stick is fantastic. It moves smooth with no janky movements. I am interested in trying out other products in the future.

    Hi Benjamin,

    Thank you very much for the great review of the Gladiator EVO F-14.
    This is a great option for any fighter pilots indeed!

    Regards, VKB Support

    K
    K.S.
    VKB Gladiator Evo F-14 Joystick

    awesome 10/10, feels great and is solid and easy to put together aswell as taking apart to interchange some parts. When i first got it i was a bit annoyed as i had to "put it together" (i thought i had to do alot more than what i had to) and once it was done i was absolutely estatic to try it out on DCS and fly the F-14B with the actual joystick :D would be awesome if you guys also made the throttle for the F-14, but i am happy with just the joystick Thanks!!

    Thank you for the great review and the video, Keenan.

    Unfortunately, a F-14 throttle is currently not available but you may want to consider the Gladiator EVO Omni Throttle. You can lock the x axis and remove the springs from the y axis so the controller behaves like a real-life throttle.

    Regards, VKB Support team
